Comparison of Urine Flow Cytometry on the UF-1000i System and Urine Culture of Urine Samples from Urological Patients Open Access

Urinary tract infections (UTIs) are among the most common bacterial infections. The gold standard for laboratory diagnosis is classical urine culture [1], which usually takes at least 24 h and 48 h when including resistance testing. Initial antibiotic therapy is therefore most often empirically calculated. International guidelines recommend usage of antibiotics like nitrofurantoin and fosfomycin for uncomplicated UTI (due to low resistance rates and resistance development). Antibiotics may be prescribed on signs and symptoms alone, when bacteria are not even present; therefore, rapid diagnostic methods to diagnose bacteriuria or its absence are an important step to promote unnecessary usage of antibiotics [2].For point-of-care results, urine is often tested using strips with leukocyte esterase and nitrite, that is, “dipsticks,” to indirectly diagnose UTI. The reliability of this approach is an ongoing subject of discussion [3]. In recent years, urine flow cytometry (UFC) has been evaluated as a reliable and efficient method to diagnose bacteriuria, revealing heterogeneous results in different patient populations [4-6]. Patients scheduled for surgery are of particular interest, as asymptomatic bacteriuria is of relevance in urothelium-traumatizing urological procedures [1].

Current guidelines generally recommend screening for bacteriuria prior to urological interventions but concur in the assessment that reagent strip analysis is not accurate enough to exclude bacteriuria and thus recommend against using it as the sole method of screening [1]. Similarly, data on UFC is deemed insufficient as it has not been studied in the context of urological patient populations. Our study aimed to evaluate UFC as a tool to screen urine samples, particularly in connection with those patients undergoing urological examination. We compare the data obtained by UFC to dipstick analysis as well as to classical methods of urine culture.

We analyzed consecutive urine samples from patients of the urological department of a university hospital with the UF-1000i system (Sysmex, Kobe, Japan).

The UF-1000i system is a flow cytometer that combines impedance method detection with the identification and quantification of urinary particles by flow cytometry of the urine. UF-1000i has the advantage of having a separate bacterial analysis channel. It analyzes 65,000 particles per sample within 50–75 s and has a throughput of 90–100 urine samples per hour. In the special high-precision bacterial mode, the maximum throughput is up to 80 samples per hour and requires either a minimum volume of 1.0 mL of centrifuged or uncentrifuged native urine in the manual mode or 4 mL in the automated sampler mode, which was used here. Consequently, it is appropriate for high-throughput screening of urine samples for UTIs. The default parameters for classifying UTIs, which are often defined as >20 WBCs/μL, are not suitable for practical diagnosis in many cases.

The UF-1000i analyzer can discriminate and count 12 diagnostic parameters of cells and formed elements and 2 calculated parameters. These parameters are white blood cells, red blood cells, epithelial cells, casts, bacteria, small round cells, yeast-like cells, spermatocytes, crystals, pathological casts, mucus, and conductivity. The system employs fluorescence flow cytometry technology, with hydrodynamic focusing in 2 different analysis chambers, the surface and core. Particles are stained by specific fluorochromes for nucleic acids and for surface structures and subsequently passed through the laser.

Counting and classification are based on signals of forward-scattered light, side-scattered light, and side-fluorescent light patterns. The pattern of individual light signals is transformed by specific algorithms into individual “fingerprints,” allowing counting, identification, and classification into the particle categories. As compared to the previous cytometers of the UFC series, this model has significant technological innovations aimed at improving the sensitivity (SE) and specificity (SP) for the elements of the urinary sediment, particularly for the determination of bacteria.

Bacterial growth analysis was performed routinely in the microbiological laboratory of the university hospital. Species identification was determined by MALDI-TOF analysis (bioMérieux) and supplemented using biochemical methods following MiQ standards [7].

To estimate the clinical benefit of UFC as a diagnostic tool, we calculated a decision curve analysis following Vickers and Elkin [8].

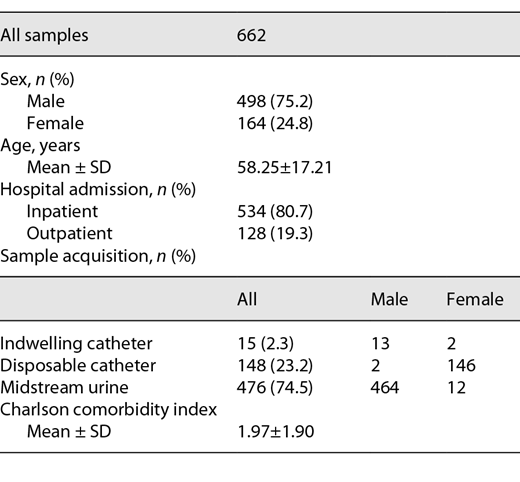

We analyzed a total of 662 urine samples from patients of a university department for urology; 75.2% were from male patients, and 24.8% were from female patients. A total of 80.7% of the samples were from inpatients, and 19.3% were from outpatients. Following internal protocols, urine samples from female patients were taken via in-and-out catheters (91.3%), whereas male patients provided midstream urine (96.9%) if there was no catheter in place (3.1%). The mean patient age was 58 years, and the mean Charlson comorbidity index was 1.97 (see Table 1) [9].

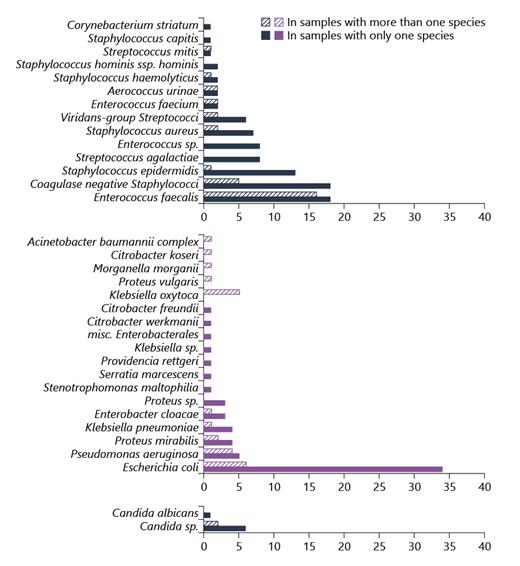

In our samples, Escherichia coli was the most common uropathogen in samples with a single species. The second most common pathogen was Enterococcus faecalis, which was even found slightly more often in samples with 2 or more species. The third most common species were Staphylococcus epidermidis and other nonspecified coagulase-negative staphylococci. The remaining species included various Enterobacterales, other cocci, nonfermenters, and Candida spp. (see Fig. 1).

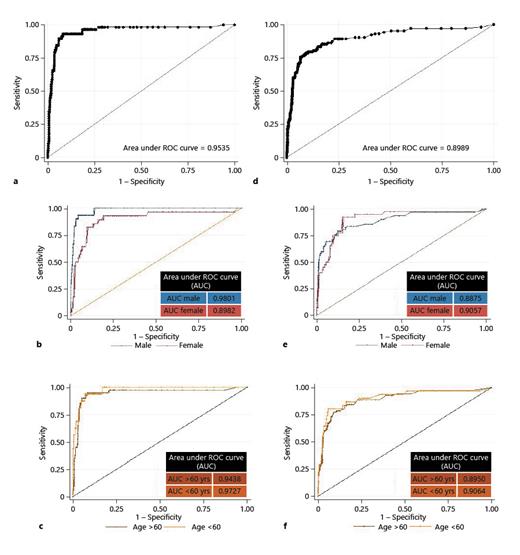

We compared the bacterial inoculum as determined by UFC and classical culture methods. Figure 2 shows a significant correlation between the 2 methods (Pearson correlation coefficient 0.65, p value <0.01%).

The correlation analysis showed that UFC and culture are a better match when using high inoculums, a finding shared with other authors [10]. We investigated if they allow categorical agreement, specifically to determine whether “significant bacteriuria” is present. For this, we compared the data from both methods using 2 cutoffs, that is, in urine cultures of complicated UTI/pyelonephritis as specified by the EAU guidelines for urological infections, using 10⁵ colony-forming units/mL (CFU/mL) and 10⁴ CFU/mL, respectively [1].

To determine the cutoff in UFC that could best distinguish between samples with at least 10⁵ CFU/mL and lower, we calculated receiver operating characteristics (ROCs). Youden analysis based on the ROC resulted in 142/µL bacteria measured by UFC as the best cutoff point to mirror 10⁵ CFU/mL. We also determined ROCs separately for female and male patients and for patients younger and older than 60 years. We then calculated statistical contingency tables for various subgroups to evaluate as to whether significant bacteriuria would be missed in certain patient subgroups (see Fig. 2; Table 2).

False results: False-negative samples obtained using UFC consisted of 2 samples with S. epidermidis, 1 with E. faecalis, and 1 with both E. coli and Aerococcus urinae. Of the false-positive samples obtained, 30 were culturally sterile, 14 had growth between 10⁴ and 10⁵ CFU/mL, 3 had growth < 10⁴ CFU/mL, and 2 were mixed species.

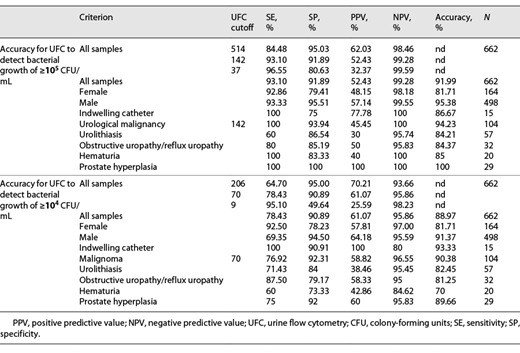

We determined the urine UFC cutoff point to mirror bacteriuria of ≥10⁴ CFU/mL. Youden analysis yielded 70/µL as the optimal cutoff point for which we calculated statistical accuracy (see Fig. 2; Table 2).

False results with the above criteria: 22 samples were false negative by UFC, with inoculums of 10⁵ CFU/mL in 3 and 10⁴ CFU/mL in 19 samples (various species). Of the 51 false positive samples, 46 were sterile, 4 had growth between 10³ and 10⁴ CFU/mL, and 1 had growth <10³ CFU/mL.

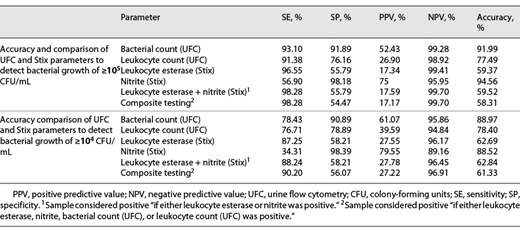

We compared the results of urine leukocyte esterase testing by the dipstick test system versus urine leukocyte counting by UFC. There was a significant correlation between leukocyte esterase and the leukocyte count in UFC (Pearson correlation coefficient 0.87, p value <0.01%, see online suppl. Fig. 1; for all online suppl. material, see www.karger.com/doi/10.1159/000520166), suggesting UFC as a suitable alternative method to leukocyte esterase testing for detecting leukocyturia.

As leukocytes are often used as a surrogate parameter to detect UTIs, we plotted leukocytes number versus bacterial counts, both determined with UFC. The analysis showed a correlation (Pearson correlation coefficient 0.68, p value <0.01%) between leukocyte counts and bacterial counts, albeit with variance (see online suppl. Fig. 2).

For the more common uropathogens, we then determined how well bacterial counts, leukocyte counts, and erythrocyte counts correlated with bacterial growth in culture. As expected, erythrocytes had very little correlation with E. coli CFU numbers grown in sample cultures. Leukocyte numbers appear to increase with higher E. coli counts. However, E. coli culture counts were best reflected by bacterial counts using UFC. The same was true for the growth of E. faecalis. The results for Klebsiella were similar; however, there were fewer data points (see online suppl. Fig. 3).

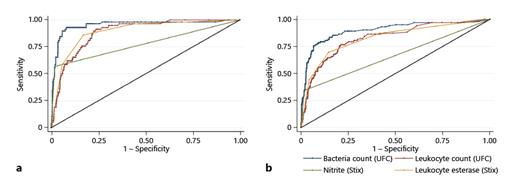

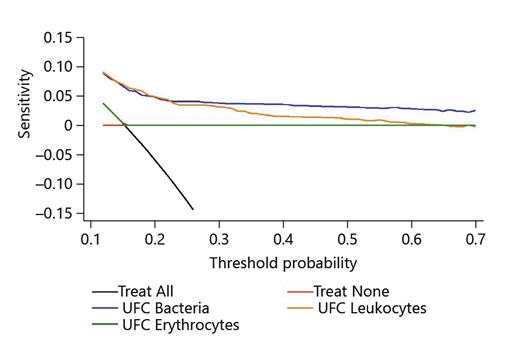

Decision curve analysis suggests UFC as a useful diagnostic tool for urine samples from urological patients (see Fig. 3).

The aim of our study was to evaluate UFC as a tool to screen patients for significant bacteriuria. Urological patients generally have additional comorbidities of the urogenital tract, which could interfere with testing and impede results compared to those of a nonurological patient population [11]. Our collection of 662 samples has characteristics that might be particularly useful for urologists; the bacterial spectrum contains more enterococci and staphylococci than previously reported from nonurological patients. This result is of significance as some authors suspect UFC to be less reliable when detecting Gram-positive bacteria as compared to Gram-negative bacteria [12-16].

Our data show a clear correlation between UFC and culture (Fig. 4). To reach decisions regarding significant bacteriuria, cutoff points for the bacterial counts given by UFC are needed. Based on our data, we calculated UFC cutoffs for predicting significant bacteriuria in culture for 2 commonly used cutoffs, 10⁵ CFU/mL and 10⁴ CFU/mL. Statistically, a cutoff of 142/µL worked best to determine bacteriuria of ≥10⁵ CFU/mL, with a 99.28% negative predictive value (NPV), which would allow negative samples to be safely discarded. This cutoff had just a 52.43% positive predictive value (PPV) however with regards to the microbiological culture identifying <10⁵ CFU/mL. In the subgroup analysis, we noted that female samples were associated with a slight decrease in PPV (48.15% vs. 57.14%). These phenomena have been described by other authors for nonurological patients as well, suggesting systematic effects [17, 18]. Indwelling bladder catheters did not seem to impact the measurements. With only 15 samples, this result is not truly conclusive but matches with one other studies that specifically investigated this component [19].

The NPV was good in patients with urological malignancy, but the PPV was slightly lower than that in the overall population (45.45% vs. 52.43%). The PPV was even lower in the 57 samples from patients with urolithiasis (30%). One could speculate that particles in the urine from patients with malignancies or stones might falsely be measured by UFC. We could however demonstrate that when compared to that in other patients, this result did not affect ruling out bacteriuria. Obstructive uropathy, hematuria, prostate hyperplasia, and age (patients younger or older than 60 years) did not compromise the accuracy of UFC.

Our comparison with the cultural cutoff of ≥10⁴ CFU/mL yielded 70 bacteria/µL as the optimal UFC cutoff, with an NPV of 95.86% and a PPV of 61.07%. As mentioned before, samples from female patients were false positive more often (PPV 57.81% vs. 64.18%). Other authors found this as well, suggesting a systematic effect, possibly by virtue of the presence of fastidious bacteria such as lactobacilli commonly found in the female genital microbiota [18, 20, 21].

As mentioned before, samples from patients with malignancy or urolithiasis were false positive more often (PPVs 58.82% and 38.46%), but NPVs were as high as those in the total population (95.45% and 96.55%). Interestingly, the NPV was reduced in samples with hematuria (84.62%). It is possible that UFC performs worse in samples with gross hematuria and low bacterial counts. Prostate hyperplasia (n = 32) and obstructive uropathy (n = 29) were not associated with such declines. While combining multiple parameters to rule out bacteriuria could be considered, in our calculations, no combination of dipstick parameters with or without UFC parameters allowed a better assessment than just bacterial count in UFC (Table 3).

Our data compare well with other studies [5, 17, 19, 22, 23]. A meta-analysis by Shang et al. [5] with 19 studies comprising 22,305 samples calculates screening performance as follows: 0.92 SE, 0.60 SP for UTI screening when using bacterial counts, 0.87 SE, and 0.67 SP when using leukocyte counts as surrogate. It seems problematic that data in this meta-analysis were pooled from studies using different reference standards (>10³, >10⁴ and >10⁵ CFU/mL). Our data for >10⁵ CFU/mL correspond well – reaching 0.93 SE and 0.92 SP – whereas data for the lower cutoff of >10⁴ CFU/mL were less accurate, showing a SE of 0.78 and a SP of 0.91. Notably, studies with lower statistical accuracy in the meta-analysis were among those that used lower cultural cutoffs values, suggesting that UFC is less reliable at the >10⁴ CFU/mL threshold. The authors of the meta-analysis indicate that subjects enrolled were often not representative of clinical patient populations, a concern shared by urology experts regarding the specific urological population.

Methodologically, our study has the strength of being “double-blinded” since UFC/dipstick and culture analysis were done independently in different laboratories. All samples undergoing UFC were also investigated with culture methods. Other studies make exceptions for “contaminated” samples [5]. While species such as S. epidermidis may certainly be considered contaminants in many cases, they nevertheless are bacteria and should be counted when evaluating CFU, especially in patients with indwelling catheters.

A key difficulty in both evaluation and in the clinical use of UFC is that cutoff values are sought to make a binary decision (UTI yes/no) from a continuous parameter by setting arbitrary cutoff points. This approach creates problems specifically with samples where bacterial counts are close to these cutoff values. Müller et al. [24] developed a nomogram that tries to account for this [25]. We envision future cytometry reports that provide not only a simple “n/µL” result but also include a depiction of the spectrum of expected cultural results, with their relative estimated probabilities. This approach would be incorporated in feedback algorithms in the laboratory software and could also include relevant patient information, such as sex or sample acquisition methods [11, 20, 26].

Our data suggest that UFC can be used to reliably rule out significant bacteriuria in urologic patients. In our laboratory, the analysis itself took about 5 min to perform (which amounts to a turnaround time from door-to-result of about an hour) and costs around 5 EUR. As it is more accurate than dipstick testing, we recommend its use.

Advantages of decision curve analysis include estimation of the clinical benefit of a testing strategy. In our example, it suggested a clear benefit for using UFC, particularly the use of the bacterial count parameter in comparison to the leukocyte parameter. A disadvantage of the decision curve analysis method is that in order to use it, one must beforehand decide on “threshold probabilities,” that is, the reliability of a test a clinician might or might not be content with when using it. In our case however a net benefit could be calculated over the whole range of threshold probabilities, encouraging the usage of UFC despite its limitations.

In terms of antibiotic administration, urologists should be able to limit the use of antibiotic prescriptions for UTI when UFC results rule out significant bacteriuria and vice versa prescribe antibiotics when UFC suggests bacteriuria and therapy is clinically indicated. Microbiological culture might be reserved for urine samples with positive UFC results and samples with specific questions, in order to get resistance testing, thus saving resources.

A limitation of our study is the low sample size for subpopulations such as children, which may be important patients in centers serving pediatric populations. Non-urological studies in pediatric populations suggest cytometry to be viable for samples from children as well [27]. Likewise, future studies would benefit from additional samples from patients with specific diseases affecting the urogenital tract in order to enhance subgroup analysis. Technically, also UFC differentiation between Gram-positive cocci and Gram-negative rods in next-generation systems should be investigated.

We conclude that counting bacteria with UFC is an accurate and rapid method to determine significant bacteriuria in urological patients. In our analysis, it performed better than dipstick analysis or indirect parameters as leukocyturia and thus would make it the preferred choice.
